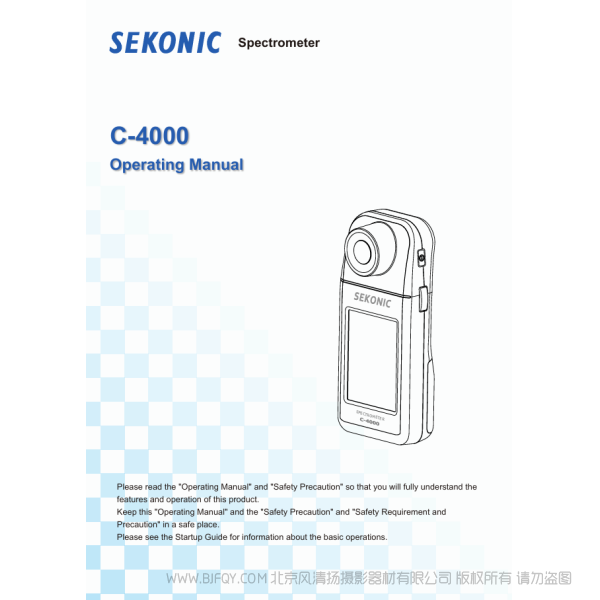

Sekonic 世光 C-4000 SPECTROMETER 401-400 说明书下载 使用手册 pdf 免费 操作指南 如何使用 快速上手

Catalog Numbers:SKU:

401-400

Family:

C-4000

Sensor:

CMOS linear image sensor

Measuring System:

Spectro Meter
Incident light

Measuring Range and Modes:Measurement range *1:

Wavelength: 380nm to 780nm
Illuminance: 5lx to 10,000lx (0.46fc to 929fc)
Color Temperature (Tcp): 1,600K to 40,000K
Color Rendering Properties:

• CRI Ra -100.0 to 100.0
• TM-30 Rf 0 to 100, Rg 0 to 200

Accuracy (Light source A):

Illuminance: +/-5% +/-1 digit (5 lx to 3,000 lx),
+/- 7.5 % +/- 1 digit (over 3,000 lx)
x,y: +/-0.003 (800lx)

Repeatability (2σ, Light source A)::

Illuminance: 1 % + 1 digit (30 lx to 10,000 lx), 5 % + 1 digit (5 lx to 29.9 lx)
x, y: 0.001 (500 lx to 10,000 lx)
x, y: 0.002 (100 lx to 499 lx)
x, y: 0.004 (30 lx to 99.9 lx)
x, y: 0.008 (5 lx to 29.9 lx)

Spectral response characteristics (f1):

9% or less

Oblique incident light characteristics (f2):

12% or less

Temperature characteristics:

Illuminance: +/- 5%
x,y: +/-0.006 (Light source A, 1,000lx)

Humidity characteristics:

Illuminance: +/- 3%
x,y: +/-0.006 (Light source A, 1,000lx)

Measurement time:

Max. 15sec, Min. 2sec

Display value:

Illuminance (lx/fc), Tcp*2 (K), uv, CRI (Ra), TM-30 (Rf, Rg), Chromaticity coordinates (x, y)

Other functions:

Data memory up to 99 items, Auto power-off, Auto dimmer

Language:

Selectable from English, French, German, Italian, Spanish, or Japanese

Physical:Operating Temperature:

5 deg.C to 35 deg.C, without condensation

Storage Temperature:

-10 deg.C to 60 deg.C, 85 % RH or less (at 35 deg.C), without condensation

Power Source:

AA battery (1.5V) x 2, USB bus-power

Interface:

USB connector (type C), Bluetooth

Operating humidity:

85% or less (at 35 deg.C), without condensation

Product Weight (lb):

0.3

Product Weight (kg):

0.14

Product Height (in):

5.5

Product Length (in):

1.18

Product Width (in):

2.44

Product Height (cm):

14

Product Length (cm):

3

Product Width (cm):

6.2

*1: "Under" is displayed when the illuminance is less than 5 lx (0.46 fc) or the Tcp is less than 1,600 K, and "Over" is displayed when the illuminance is over 10,000 lx (929 fc) or the Tcp is over 40,000 K.

*2: Tcp is Temp�rature de Couleur Proximale (Correlated Color Temperature).
