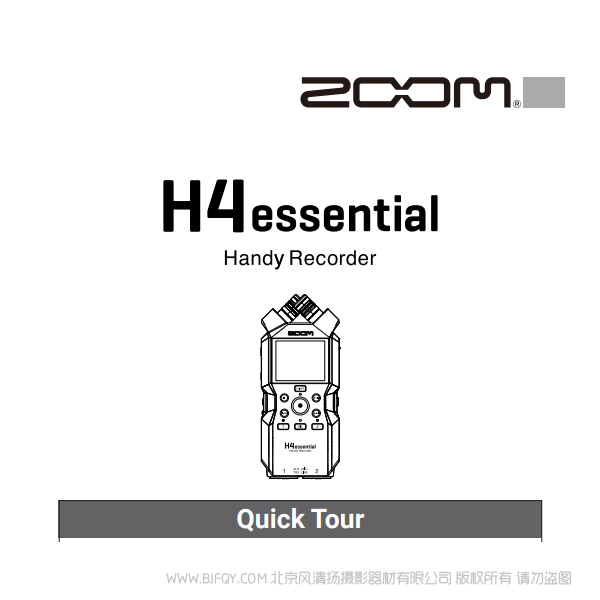

ZOOM H4essential Quick Tour 说明书下载使用手册 pdf 免费操作指南如何使用快速上手

更新时间2024/02/17 点击数 3235 3.06MB 点我下载

Specs

INPUT AND OUTPUT CHANNELS

Inputs	Built-in mic (stereo)	1
	XLR/TRS	2
	MIC/LINE IN	1
Outputs	Headphones	1
	Built-in speaker (mono)	1

INPUTS

Built-in mic	90º XY stereo format
	Directionality	Unidirectional
	Sensitivity	–43 dB/1 Pa at 1 kHz
	Maximum sound pressure input	130 dB SPL
INPUT1-2	Connector	XLR/TRS combo jacks ×２
		(XLR：2 HOT TRS：TIP HOT）
	Input gain	Adjustment unnecessary
	Input impedance	MIC: 3.8 kΩ or more
		LINE: 39 kΩ or more
	Maximum input level	MIC: +4 dBu
		LINE: +24 dBu
	Phantom power	+48 V
		Channel total 10 mA or less
	Equivalent input noise	MIC: -120 dBu or less（IHF-A) @150 Ω input
		LINE: -95 dBu or less（IHF-A) @600 Ω input
MIC/LINE IN	Connector	Stereo mini jack
（supports plug-in power）	Input gain	Adjustment unnecessary
	Input impedance	2 kΩ or more

OUTPUTS

Headphones	Connector	Stereo mini jack
	Maximum output level	20 ｍW + 20 ｍW（into 32 Ω load）
	Output impedance	15 Ω or less
Built-in speaker	Type	20 x 30mm elliptical dynamic speaker
	Effective maximum output	250mW

RECORDER

Maximum simultaneous recording tracks	4
Maximum simultaneous playback tracks	4
Recording formats	WAV
	44.1/48/96 kHz,
	32-bit float mono/stereo
	BWF and iXML formats supported
Recording media	4-32GB cards compatible with the microSDHC specification
	64GB–1TB cards compatible with the microSDXC specification

DISPLAY

2.0-inch full-color LCD	360 x 240

USB

Connector	USB Type-C
	• Use a USB cable that supports data transfer.
USB Mic	USB 2.0 High Speed
	44.1/48 kHz
	24-bit /32-bit float
	4-in/2-out
File transfer	USB2.0 High Speed

REMOTE

Dedicated wireless adapter	ZOOM BTA-1

POWER

2 AA batteries	Alkaline, lithium or rechargeable NiMH batteries
AC Adapter	ZOOM AD-17：DC 5V / 1 A
	• USB bus power is supported.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track recording (built-in XY mic)

Alkaline batteries	About 9 hours
NiMH batteries (1900 mAh)	About 9 hours
Lithium batteries	About 19 hours

48 kHz/32-bit float, phantom power off, no headphones, no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 4-track recording (built-in XY mic with INPUT 1-2)

Alkaline batteries	About 2 hours 30 minutes
NiMH batteries (1900 mAh)	About 4 hours
Lithium batteries	About 8 hours

48 kHz/32-bit float, phantom power off, headphones used (33Ω load), no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 4-track recording (plug-in power mic with INPUT 1-2)

Alkaline batteries	About 40 minutes
NiMH batteries (1900 mAh)	About 1 hour 30 minutes
Lithium batteries	About 3 hours 30 minutes

Power consumption	3 W maximum
Dimensions	66.9 mm (W) × 156.1 mm (D) × 38.0　mm (H)
Weight (including batteries)	243 g

Note: 0 dBu = 0.775 Vrms
