阿兹丹 Azden FMX-42a - 4 Channel Portable Mixer w/ 10-pin Camera Return
￥ 6500.00元
相关推荐
1800.00
阿兹丹 Azden SGM-250CX Professional Compact Cine Mic 专业紧凑型电影麦克风
0.00
阿兹丹 Azden FMX-42u - 4 Channel Portable Mixer w/ USB Digital Audio Output
1400.00
阿兹丹 Azden SMX-15 Powered Shotgun Video Microphone
1500.00
Azden 阿兹丹 SGM-PDII Compact Shotgun Microphone w/ Cable
2100.00
阿兹丹 Azden SMX-30V Stereo/Mono Mixable Video Microphone
- 4 balanced XLR line/mic inputs and pan controls
- Switchable 48V phantom power and limiting
- Professional quality VU meters
- 2 balanced XLR outputs (line/mic switchable)
- Stereo mini-jack output for DV cameras
- 10-pin & mini-jack Camera Return (use MX-10 Cable)
- Headphone out with level control
- 6x AA battery powered
- Optional A/C adapter
- 2 year warranty

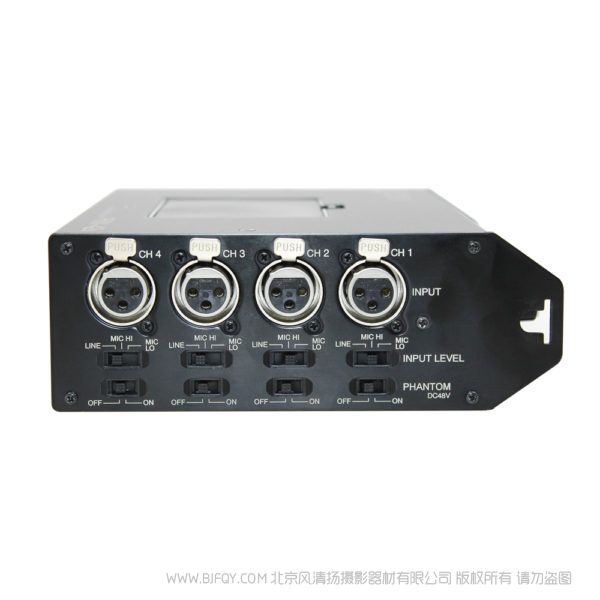

Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.
The 10-pin camera return may also be used as a secondary stereo output, independent from the mixer’s main XLR outputs, using Azden’s MX-10 Cable.
The FMX-42a can be powered by either 6 internal “AA” batteries or an optional 12V DC external supply (Locking 4-Pin Hirose connector). A ballistic nylon carrying case is included.
| GENERAL | |
| Frequency Response | |
| Balanced or Unbalanced Output: | 20 Hz – 30 kHz (+0/-1.5 dB) |
| Monitor Output: | 30 Hz – 30 kHz (+0/-2 dB) |
| Signal-to-Noise Balanced Output: | -120 dBu (A weighted, input equivalent level) |
| T.H.D. Balanced Output: | < 0.005% @ 1 kHz (at LINE position +19 dBu output) |
| Phantom Power Voltage: | 48V (±1.5V) |
| Sample Tone Frequency: | 1 kHz |
| Battery Requirement: | 6 Alkaline “AA” |
| External Power: | 10.5 ~ 17V DC @ 200mA |
| Dimensions: | 220 mm W x 160 mm D x 56 mm H (without protrusions) |
| 9″W x 6 1/2″ D x 2 1/4″ H (without protrusions) | |
| Weight: | 1.3 kg / 2.9 lbs (without batteries) |
| INPUT | ||
| Balanced Input: | XLR 3-pin Female x 4 (CH1, 2, 3 & 4) | |
| Level | LINE | Standard: +4 dBu (electronically balanced) |
| Maximum: > +26 dBu | ||
| Impedance: 20kΩ | ||
| MIC HI | Standard: -38 dBu (electronically balanced) | |
| Maximum: +4 dBu | ||
| Impedance: 2Kω | ||
| MIC LO | Standard: -58 dBu (electronically balanced) | |
| Maximum: -15 dBu | ||
| Impedance: 2kΩ | ||
| High Pass Filter (HPF): | 100Hz – 6dB/oct | |
| Return Inputs (FMX-42a): | Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P | |
| 3.5mm (1/8″) Stereo Mini-Jack | ||
| Input Level: | -20 dBu – +19 dBu (unbalanced) | |
| Impedance: | 11kΩ |
| OUTPUT | |||
| Balanced Outputs: | XLR 3-pin Male x 2 (Output L & R) | ||
| Hirose 10-pin Female for Hirose Plug (FMX-42a only) | |||
| Unbalanced Output: | 3.5mm (1/8″) Stereo Mini-Jack | ||
| Monitor Output: | 6.3mm (1/4″) Stereo Jack | ||
| Digital Signal Output (FMX-42u): | USB mini-B connector (female) | ||
| Balanced Level Output | |||
| +4 dBu | LINE | Standard: | +4 dBu (electronically balanced, 5kΩ load) |
| Maximum: | +20 dBu (electronically balanced, 5kΩ load) | ||
| -36 dBu | MIC | Standard: | -36 dBu (electronically balanced, 5kΩ load) |
| Maximum: | -20 dBu (electronically balanced, 5kΩ load) | ||
| Impedance: | 600 Ω | ||
| Standard: | -36 dBu (electronically balanced, 2kΩ load) | ||
| Maximum: | -20 dBu (electronically balanced, 2kΩ load) | ||
| Impedance: | 120Ω | ||
| Monitor Output | Max Output: | +1 dBu (32Ω load at 9V) | |
| 16-100Ω load recommended | |||
| Meters | Standard Output Level: | 0 VU (+4 dBu) | |
| DIGITAL SIGNAL OUTPUT (FMX-42u Only) | |||
| Interface Format: | USB 2.0 Full Speed | ||
| Audio Data Format: | Isocronas Data Format | ||
| Sampling Frequencies: | 16 / 22.05 / 32 / 44.1 / 48 kHz Compatible | ||
| Bit Depth: | 8 / 16 bit Compatible | ||
| Channels: | 2 | ||
| Device Name: | USB AUDIO CODEC |
