Two channel portable audio field mixer with 2 XLR in, 2 XLR out and mini-jack out.
Features
- 2 balanced XLR mic inputs and pan controls
- Switchable 48V phantom power and limiting
- 5-step LED master bus meters
- 2 balanced XLR outputs
- Stereo mini-jack output for DSLR cameras
- Headphone out with level control
- 4x AA battery powered
- Optional A/C adapter
- 2 year warranty

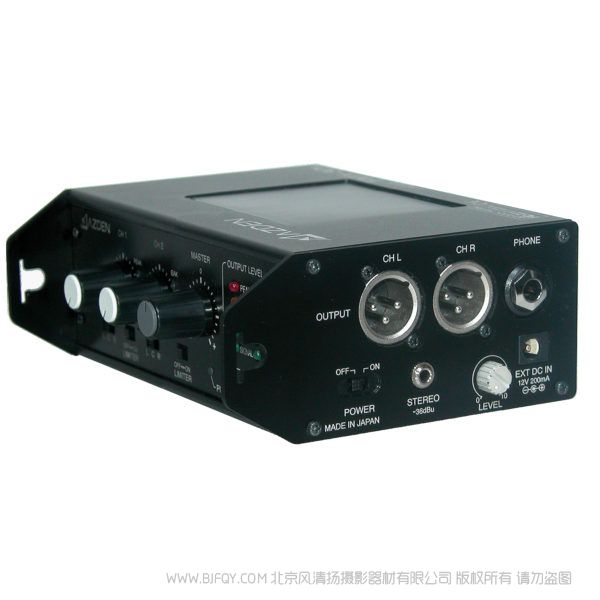

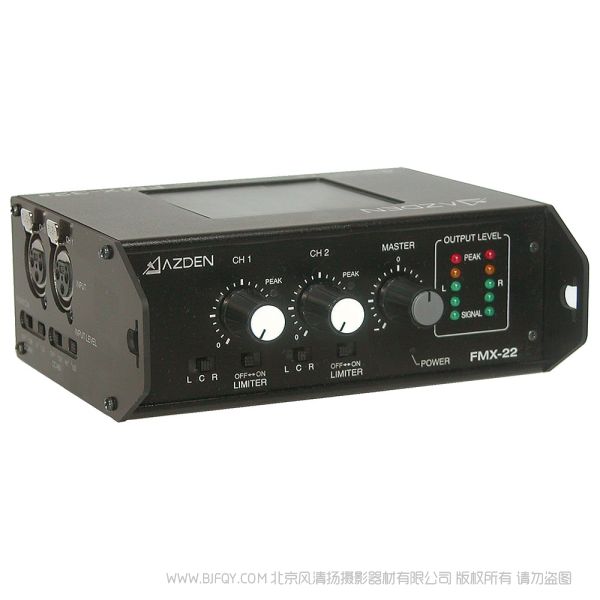

New and improved, the FMX-22 now uses the same circuit topology as the more expensive Azden mixers. With improved signal to noise ratio and wider frequency response the new FMX-22 is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (4-“AA”) mixer can be attached directly to any flat surface with supplied hook-and-loop fastener. The FMX-22 has the following features: 2 XLR microphone inputs each with 2 input settings, 2 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED meters easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.
-
- Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
- Monitor Output: 50-17,000Hz (-3dB)
Noise Level
-
- Left & Right Channel: -119dBu (A weighted, Input Equivalent Level)
- T.H.D.: less than 0.005% @ 1KHz (+10dBu output)
MIC Input Level
-
- LO -21 dBu Gain +58dB max gain
- HI -5dBu Gain +42dB max gain
Monitor Output
-
- 3.5mm Stereo: -4dBu (32 ohm load)
- (Recommended load 16-100 ohms)
Maximum Output Level
- Balanced Output:
- +15dBu (5K ohms)
[/one_half]
[one_half_last]
- -20dBu (2K ohms)
Battery Type/Duration
- 4 – AA Alkaline – 15 hours
Current Drain
- 77mA nominal (Phantom Power Off)
- 118mA maximum (Phantom Power On)
Phantom Power
- Voltage: 48VDC (+/- 1.5VDC)
Dimensions
- Size: 53.5H x 145W x 120D mm (2.19 x 5.70 x 4.75 inches)
- Weight w/o Battery: 23.58 ounces (670 grams)
