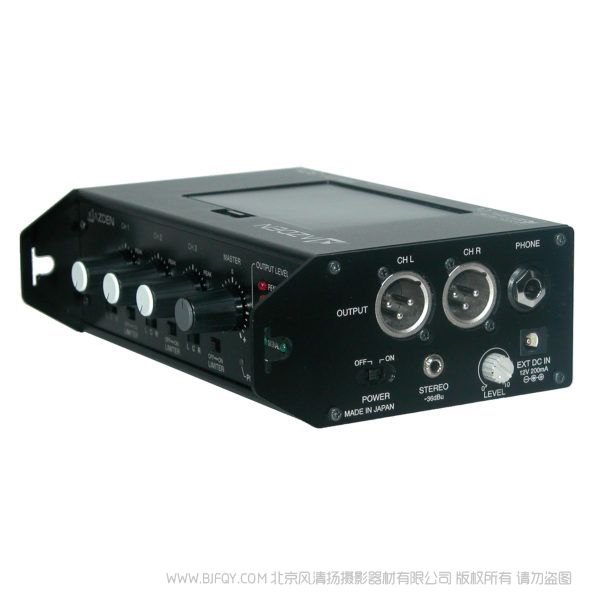

阿兹丹 Azden FMX-32a - 3 Channel Portable Mixer 3通道混音器 调音台
¥ 4000.00元
相关推荐
1800.00
阿兹丹 Azden SGM-250CX Professional Compact Cine Mic 专业紧凑型电影麦克风
0.00
阿兹丹 Azden FMX-42u - 4 Channel Portable Mixer w/ USB Digital Audio Output
1400.00
阿兹丹 Azden SMX-15 Powered Shotgun Video Microphone
2100.00
阿兹丹 Azden SMX-30V Stereo/Mono Mixable Video Microphone
1500.00
Azden 阿兹丹 SGM-PDII Compact Shotgun Microphone w/ Cable
Three channel portable audio field mixer with 3 XLR in, 2 XLR out and mini-jack out.
Features
- 3 balanced XLR mic inputs and pan controls
- Switchable 48V phantom power and limiting
- 5-step LED master bus meters
- 2 balanced XLR outputs
- Stereo mini-jack output for DSLR cameras
- Headphone out with level control
- 6x AA battery powered
- Optional A/C adapter
- 2 year warranty
New and improved, the FMX-32a now uses the same circuit topology as the more expensive FMX-42 series mixers. With improved signal to noise ratio and wider frequency response the new FMX-32a is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (6-“AA”) mixer can be attached directly to the camera with supplied hook-and-loop fastener. The FMX-32a has the following features: 3 XLR microphone inputs, 3 input level controls, master level control, switchable phantom power and limiters for each input, channel panning switches (L-C-R), stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4″ monitor headphone jack with level control.
-
- Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
- Monitor Output: 50-17,000Hz (-3dB)
Noise Level
-
- Left & Right Channel:-120dBu (A weighted, Input Equivalent Level)
- T.H.D.: less than 0.005% @ 1KHz (+10dBu output)
MIC Input Level
-
- LO -20 dBu Gain -6Db
- HI -3dBu Gain +45Db
Monitor Output
-
- 3.5mm Stereo: -4dBu (32 ohm load)
- (Recommended load 16-100 ohms)
Maximum Output Level
- Balanced Output: +20dBu (5K ohms)
- Unbalanced Output (3.5mm) -19dBu (2K ohms)
[/one_half]
[one_half_last]
- 6 – AA Alkaline – 15 hours
Current Drain
- 47mA nominal (Phantom Power Off)
- 100mA maximum (Phantom Power On)
Phantom Power
- Voltage: 48VDC (+/- 4VDC)
Dimensions
- Size: 53.5H x 170W x 120D mm (2.19 x 6.93 x 4.75 inches)
- Weight w/o Battery: 26.45 ounces (750 grams)
