视威 Swit LA-R480 48通道 DMX512灯控台
¥ 3980.00元
相关推荐
› 标准DMX512信号,完全电气隔离输出
› 24个通道推杆,6集控推杆,1个总控推杆
› 每个推杆均配有点控按键
› PAGE A/B翻页支持48路DMX操控
› RS232连接中控实现远程调用集控
› 支持4台主从串联,较多可扩展192个通道
› 支持掉电记忆保护
› 3芯DMX输入及输出
› 1路USB-A 5V供电输出
› 航空头AC 88-256V输入及环出
› 适用于标准19英寸机架安装
通道 | 48 |
集控推杆 | 6 |
总控推杆 | 1 |
DMX接口 | 3芯 XLR-D3F |
串联链接 | 4 台, 较大 192路通道 |
电源 | 航空插头 AC 88-256V 50/60Hz,1路输入; 1路环出; |
整机尺寸 | 482×265×75mm |
净重 | 2.65kg |
48-ch DMX Console

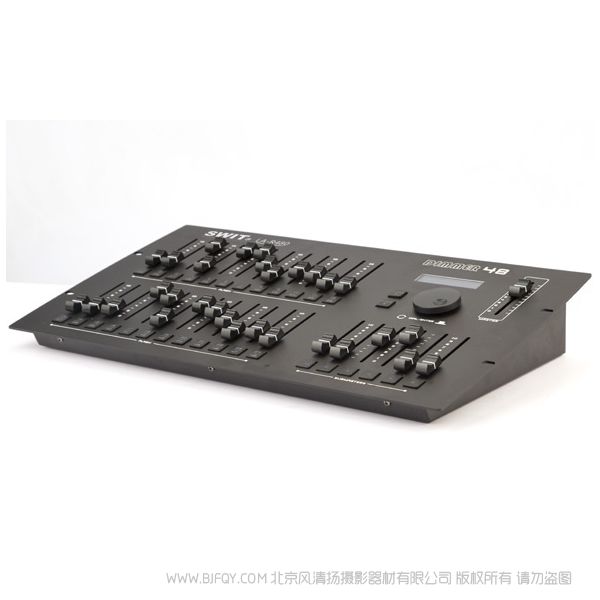

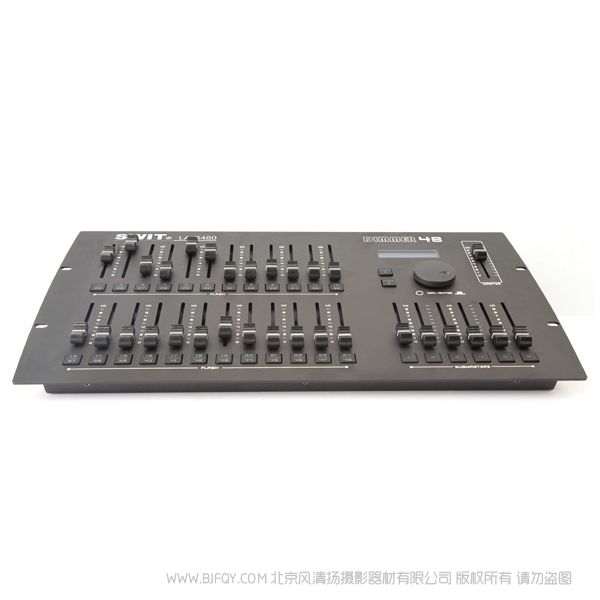

LA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders and Page A/B switch to control 48 channels in total.
Interface

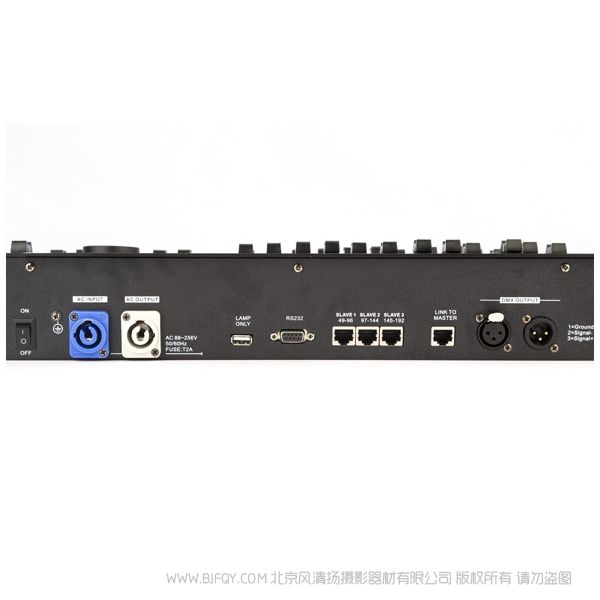

LA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.
Submaster and Master Control

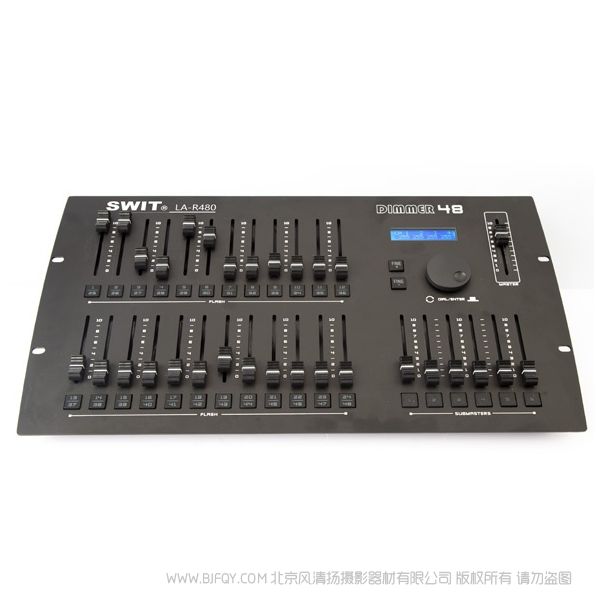

LA-R480 provides 6x Submaster sliders to group any of the 48 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel.
Serial Connection to Max 192-ch
You can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192.
