RED V-RAPTOR [X] 迅猛龙X 8K VV 3540万像素 SKU 710-0390-02 电影机全域快门传感器

￥ 249500.00元

2个独立 12GSDI 输出监看接口支持800MB 监看 CEB存储卡全域快门高感光

咨询

“缺货” 标题含有缺货字样会不定期进行补货，具体根据厂商和供应商的到货时间，详情可咨询客服

“停产” 标题含有停产字样此商品仅供展示

“预售” 标题含有预售字样表示预约意向如若需求可咨询客服

相关推荐

7999.00

RED V-RAPTOR 迅猛龙肩托快装板平台 QUICK RELEASE PLATFORM PACK SKU 790-0692

2699.00

RED PRO CFEXPRESS 1TB 存储卡 CEB原装卡 SKU 750-0102

359999.00

RED V-RAPTOR XL [X] 霸王龙X SKU 710-0394 电影机全域快门 3540万像素 8K120P 4K240P

3999.00

RED PRO CFAST 512GB Cfast闪存卡存储原装 SKU 750-0093

9999.00

RED V-RAPTOR XL EF MOUNT 霸王龙 EF卡口适配器 SKU 725-0051

包装内容：

V-RAPTOR [X] 8K VV Body
DSMC AC Power Adaptor Pack (150W)
RED Logo Sticker
V-RAPTOR [X] Information Card (incl. registration and support info)
2 Year Standard Warranty

BEST OF BOTH WORLDS

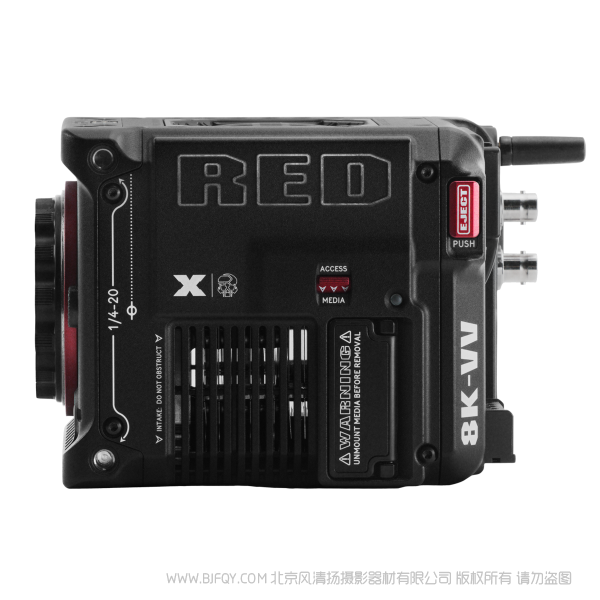

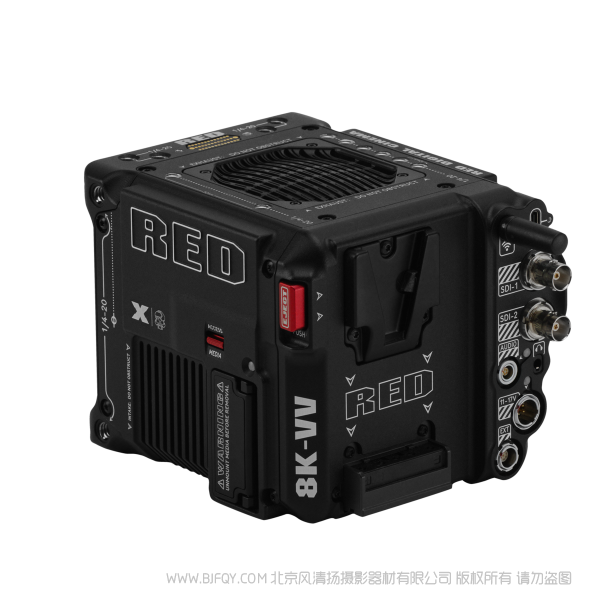

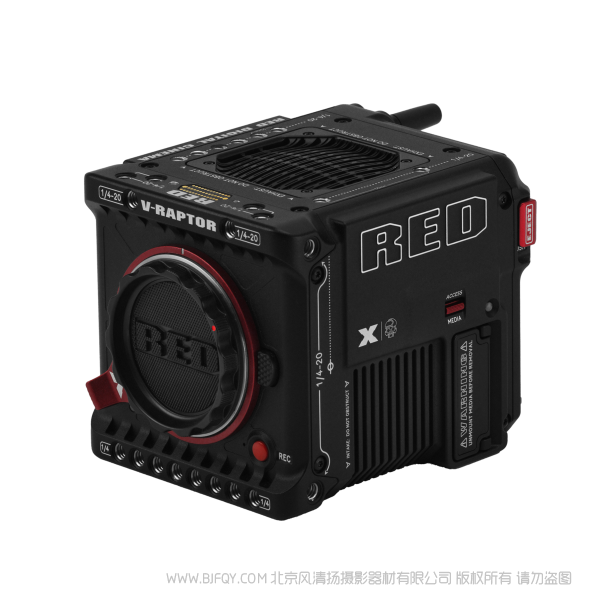

V-RAPTOR® [X] 8K VV combines the strengths of RED’s two families of cameras into one powerful all-purpose workhorse. The frame rates, lowlight performance, and resolution of the V-RAPTOR® line combined with the global shutter advancements of KOMODO®, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED’s newest 8K VV sensor, V-RAPTOR [X] leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a compact and feature rich body weighing just over 4lbs.

THE NEW STANDARD

V-RAPTOR [X] is the first large format global shutter camera available. It is built off the same keystone features found in the original V-RAPTOR, such as 2x 12G SDI’s capable of unique monitoring views, a locking Canon RF style lens mount for rigid and flexible lens selection, and CFexpress Type B media for up to 800MB/s formats such as 8K 120P. In addition, improved in-camera audio pre-amps as well as a redesigned sensor cavity designed to mitigate stray light and improve contrast performance only further builds upon the V-RAPTOR legacy.

GLOBAL VISION

V-RAPTOR [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision’s Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HDR finishes, or softer and more subtle highlight roll-off for SDR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrame™ or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.

IP CONNECTED

Additionally, the V-RAPTOR [X] and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.

V-RAPTOR® [X] 8K VV

SENSOR TYPE	V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS
EFFECTIVE PIXELS	8192 x 4320
SENSOR SIZE	40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE	17+ stops

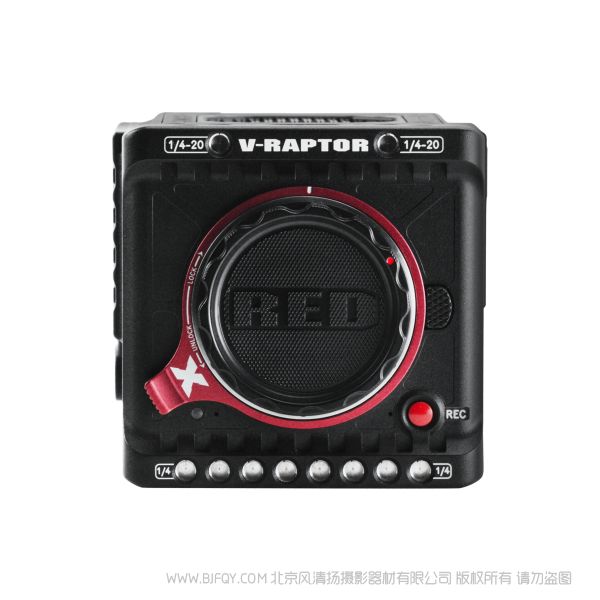

MOUNT TYPE	Integrated locking RF mount with electronic communication Supports /i PL lenses with RED RF to PL Adapters Supports Canon EF Adapter with communication and other adapters based on the RF mount
MAX DATA RATES	Up to 800 MB/s using RED branded or other qualified CFexpress media cards1
REDCODE® RAW MAX FRAME RATES	120 fps at 8K 17:9, 150 fps at 8K 2.4:1 140 fps at 7K 17:9, 175 fps at 7K 2.4:1 160 fps at 6K 17:9, 200 fps at 6K 2.4:1 192 fps at 5K 17:9, 240 fps at 5K 2.4:1 240 fps at 4K 17:9, 300 fps at 4K 2.4:1 320 fps at 3K 17:9, 400 fps at 3K 2.4:1 480 fps at 2K 17:9, 600 fps at 2K 2.4:1
BEST AVAILABLE REDCODE® SETTINGS	REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps REDCODE LQ and ELQ at 8K 17:9 up to 120 fps REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps
REDCODE® RAW ACQUISITION FORMATS	8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9, 2:1, 2.4:1, 16:9, 1:1 4K 17:9, 2:1, 2.4:1, 16:9, 1:1 3K 17:9, 2:1, 2.4:1, 16:9, 1:1 2K 17:9, 2:1, 2.4:1, 16:9, 1:1
APPLE PRORES	Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.
CONSTRUCTION	Aluminum Alloy
DIMENSIONS	149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.)
WEIGHT	4.03 lbs / 1.83 kg (without body cap and CFexpress card)
MEDIA TYPE	CFexpress Type B
BATTERY TYPE	Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1
DC POWER INPUT	11-17 V via 6-Pin DC-IN
OPERATING TEMPERATURE	0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE	–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY	0% to 85% non-condensing
RED GLOBAL VISION	Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios. Phantom Track recording mode to capture multiple LED instances as dedicated clips.
COLOR MANAGEMENT	Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import and adjustment of CDLs
AUDIO	Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz 3.5mm stereo headphone port
AUTOFOCUS	Phase Detect with Face Detection
IP CONNECTED	Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110. Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3 Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload
MONITOR OUTPUTS	Proprietary Top Accessory Port for Monitoring and Control Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

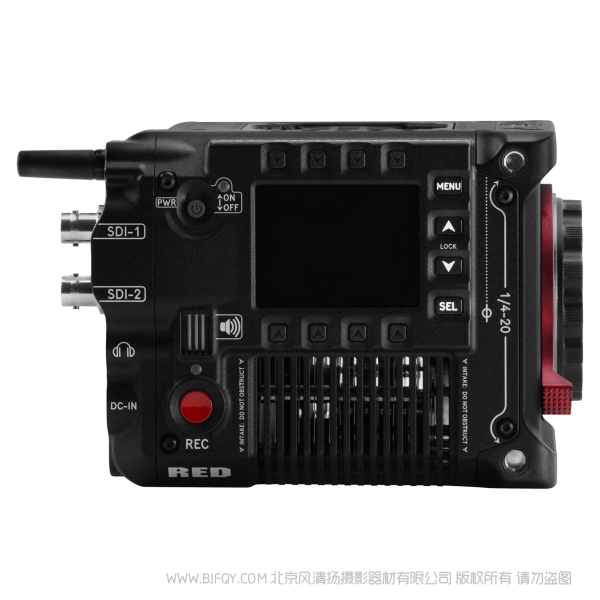

MONITOR OPTIONS	DSMC3 RED Touch 7.0” LCD RED Compact EVF with DSMC3 Adapter A Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing Integrated 2.4" LCD for camera control (no preview video)
ADDITIONAL I/O	Tri-Level Genlock Input via 9-Pin EXT LTC Timecode Input via 9-Pin EXT RS232 CTRL (using RCP2) via 9-Pin EXT
RED CONTROL & RED CONTROL PRO	Access full camera controls and live preview from iOS or Android devices Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location. Standard app available from the Apple App Store and Google Play Store. RED Control Pro available via Apple App store only and requires additional purchase. RED Control works wirelessly or wired via USB-C
