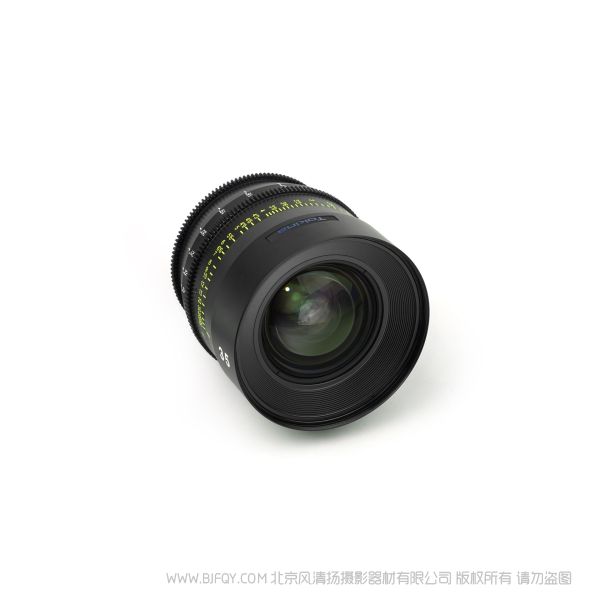

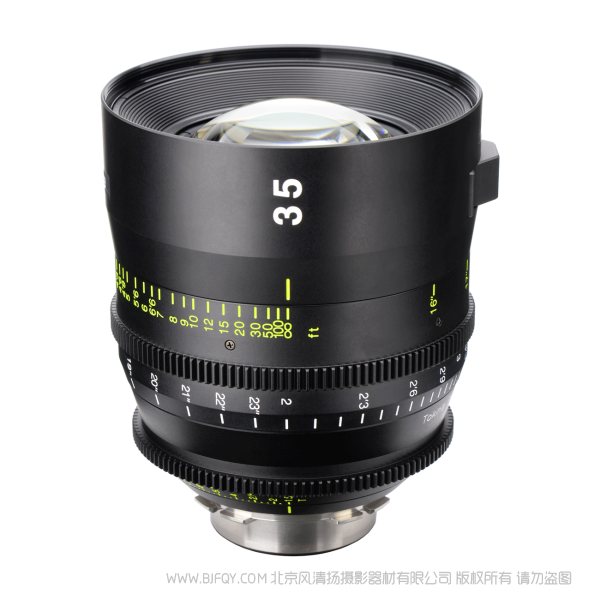

Tokina 图丽 Vista Prime 35mm T1.5 PRIME KPC-3001PL Mounts: Arri PL, Canon EF, Sony E, Micro 4/3

112mm

Filter Size

2.03kg | 4.48lbs (PL)
2.11kg | 4.65lbs (EF)
2.16kg | 4.76lbs (MFT)
2.20kg | 4.85lbs (E)

Weight

Tokina Cinema 推出了新的 Vista 系列 T1.5 定焦镜头。这些革命性的新镜头具有巨大的 46.7mm 像圈，使这些镜头与市场上几乎所有电影相机传感器兼容，包括 VistaVision 格式。新的Vista系列都具有完全相同的尺寸和齿轮位置，便于设置和工作流程。超清晰，对焦期间图像呼吸几乎为零。Tokina Cinema Vista 是真正现代的超清晰无所不包的解决方案，可满足您的影院和运动成像捕捉需求。

特征

• 快速 T1.5 T 光圈，适合弱光拍摄
• 对焦时几乎没有呼吸
• 整个虹膜系列都非常令人愉悦的图像特征，并且可以全开使用
• T1.5 至 T22 光圈范围
• 使用非球面镜片和现代镀膜，校正良好的图像，极低的色差
• 全新设计的大画幅影院玻璃
• 46.7mm的像圈覆盖FF35、VistaVision和Red Dragon 8K VV
• 镜头两侧有清晰标记的焦点和光圈刻度
• 一致的 114mm 前外径，适合高效使用哑光盒
• 镜头还具有 112mm 旋入式滤镜尺寸（不包括 Vista 18mm）
• 镜片长度一致，适合快速更换镜片
• 在对焦拉动过程中镜头长度一致，摆动掉的哑光盒保持原位
• 9 叶片光圈，带来圆润的散景美感
• 对焦拉动时无图像偏移
• 坚固的建筑材料，适合长期使用和拥有
• 可摇晃支架

Fast T1.5 lenses with sensor coverage well beyond full frame

Featuring High resolution modern optics with free form design for visual acuity matching the human eye.

Craft images with more control in challenging lighting conditions. Keep your subject right where you left it with our virtually zero breathing optical design. Precision and versatility for the future. Cinematography is your art, ours is technology.

Tokina Vista Prime lenses

High resolution modern optics featuring free form design for visual acuity matching the human eye. Fast T1.5 lenses with sensor coverage well beyond full frame. Craft images with more control in challenging lighting conditions. Keep your subject right where you left it with our virtually zero breathing optical design. Precision and versatility for the future. Cinematography is your art, ours is technology.

General info

Model

Vista Prime 35mm T1.5

Model Description

Tokina Cinema Vista Prime 35mm T1.5

Series

Vista

Type

Prime

Image Circle

Ø46.7mm (PL, EF)
Ø40.8mm (MFT)
Ø45.6mm (E)

Mount

Arri PL, Canon EF, Micro 4/3, Sony E

Main specifications

Focal Length

35mm

Maximum Transmission

T1.5

Minimum Focusing Distance

0.41m (16")

Macro Ratio

1 : 7.81

Filter Size

112mm

Construction

Construction E/G

14 Elements in 13 Groups

Aperture Blades

9

Additional info

Dimensions

131*Ø114mm (PL)
139*Ø114mm (EF)
164*Ø114mm (MFT)
165*Ø114mm (E)

* from mount surface

Diameter of Front Head

Ø114mm

Weight

2.03kg | 4.48lbs (PL)
2.11kg | 4.65lbs (EF)
2.16kg | 4.76lbs (MFT)
2.20kg | 4.85lbs (E)
