沙雀萨拿ACE 1018C套装 8公斤承重 微电影液压云台碳纤维三脚架 System Ace XL MS CF

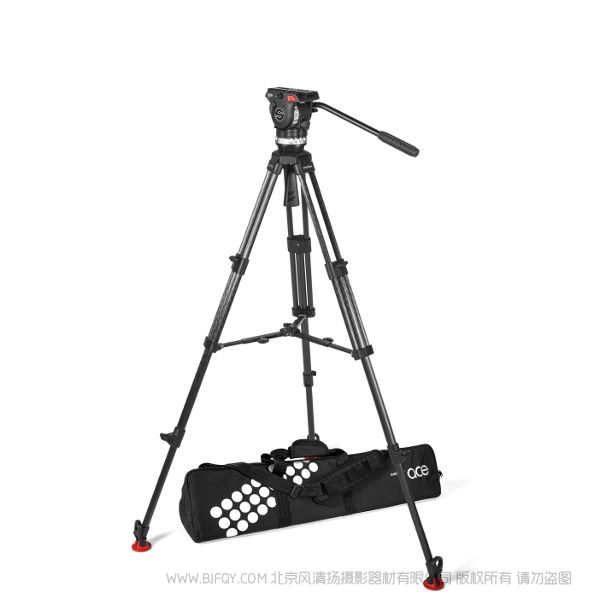

The Ace XL Tripod is exclusively available as a package with a 75 mm fluid head and a useful transport bag. Anybody who works on uneven ground and “on location” would have an advantage with the two-stage extension tripods featuring a mid-level spreader.

Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, patented Sachtler drag always gives you subtle and smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results.

是Ace XL三脚架特供套装，含75mm液压云台及功能性运输软包。在不平坦地面和外景拍摄地工作的人员均可使用含中置延伸器的两级三脚架。 工作快速高效，轻松实现完美拍摄效果。一旦摄像机设定好动平衡， Sachtler的阻尼技术将持续稳定地给您带来精细而平滑的操控。3档的水平和垂直阻尼也可助您快速而直观地操作，同时始终确保装备的可靠性。75毫米云台滑板的滑动范围达120毫米，提升工作灵活性，获得拍摄效果。

Range

Ace

Pan bar count

1

Payload

2 to 8 kg

Bowl size

75 mm

Weight

3.90 kg

Spreader type

Mid-level spreader

Material

Carbon Fibre

Transport length

860 mm

Tripod stages

2

Height with spreader

0.79 to 1.70 m

Temperature range

-30 to 60 °C

Tilt range

90° to -75°

Sliding range

104 mm

Interface Compatibility

Slide-in

Counterbalance

8 counterbalance steps

Drag

3 + 0 horizontal and vertical grades of drag

产品线

Ace

手柄数量

1

较大承重

2 to 8 kg

球碗口径

75 mm

延伸器类型

Mid-level spreader

材料

Carbon Fibre

收纳长度

860 mm

三脚架级数

2

高度范围 - 含延伸器

0.79 to 1.70 m

重量

3.90 kg

温度范围

-30 to 60 °C

俯仰范围

90° to -75°

托板滑动范围

104 mm

接口兼容性

Slide-in

动平衡

8 个动平衡档位

阻尼

3 种水平和垂直阻尼设置 + 0
