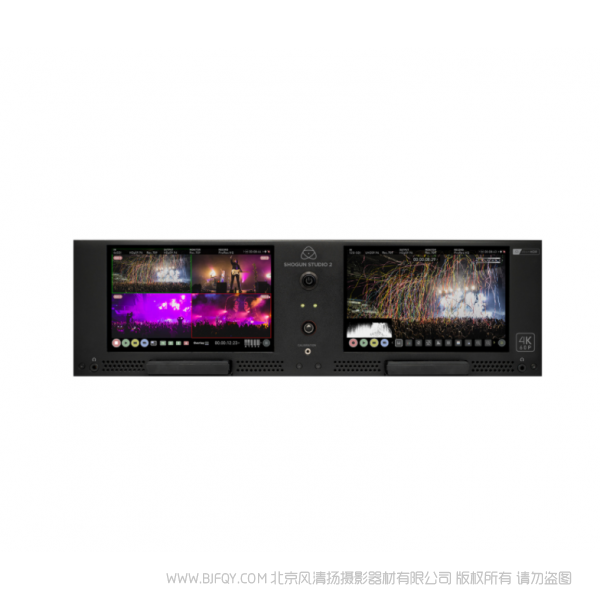

Atomos 阿童木 Shogun Studio 2 双联屏幕监视器 4K 8路高清输出 2路4K监看

HDR dual monitor
8-channel HDp60
2-channel 4Kp60 rackmount recorder

The flexible new Shogun Studio 2 takes state of the art Atomos multi-channel recording technology and combines it with two premium 7” HDR 3000nit* high bright touchscreen displays, all in a single 3RU unit. Its unique combination of features makes it perfect for live events, outside broadcast vehicles, production galleries and MCRs, post production facilities, video wall playout, on-set DITs and sports officiating. Connect to practically any SDI or HDMI source including camera channels, PTZ cameras and vision mixers.

PRODUCTION READY

Record multiple formats

The Shogun Studio 2 records either two channels of 4Kp60, or up to eight HDp60 sources in industry standard Apple ProRes, ProRes RAW and AVID DNx codecs. Free your workflow from the constraints of highly compressed GOP based codecs and their associated artifacts. Replace them with clean images captured direct from the sensors of your camera channels using modern Intra-frame codecs.

Both ProRes and DNx are robust, easy to edit, color accurate production codecs used throughout the industry. You can even take this one step further and record ProRes RAW from a wide range of cinema cameras for maximum fidelity.

Playback and Edit

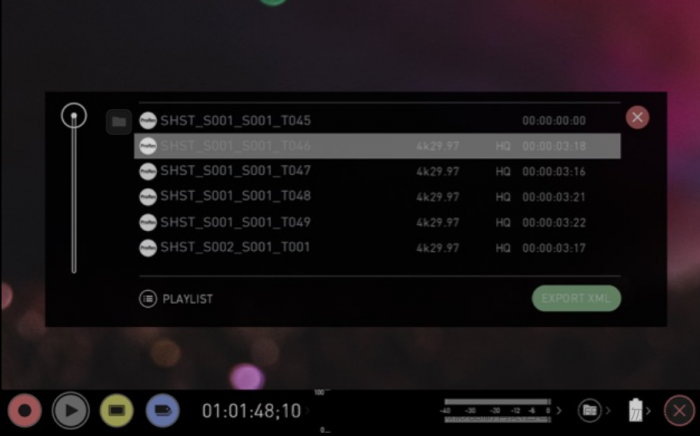

Review or play out your footage directly on the Shogun Studio 2 using the innovative touchscreen controls. Playback and play out up to 4Kp60 video, or 2K/HD high frame rate footage slowed down in the unit itself. Playlists can be created from clips either recorded on an Atomos recorder, or from your edit system in a supported codec, resolution and frame rate.

RACK READY

Master your rack with
Shogun Studio 2

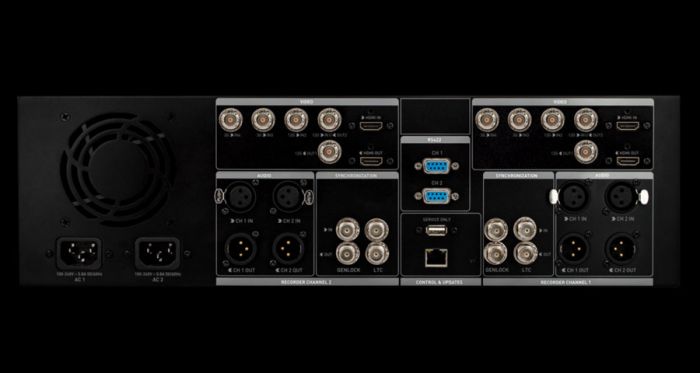

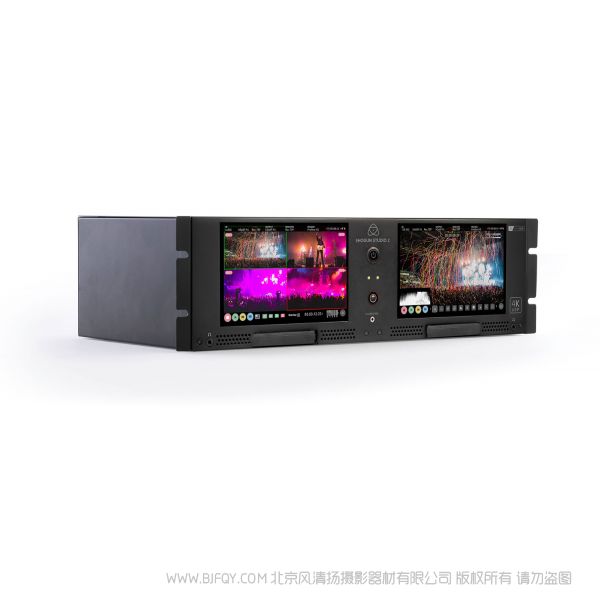

The Shogun Studio 2 only takes 3RU of space and has a short rack depth making it perfect for use in monitor bridges or in small mobile broadcast vehicles. Redundant dual power supplies balance the power load. The rear of the Shogun Studio 2 provides grouped connectivity for each of the recorder channels with 12G, 6G, 3G (single, Dual, Quad) and 1.5B SDI I/O, HDMI with support for both the inputs and outputs, plus XLR audio I/O, Genlock and LTC input and loop through.

RECORD

Advanced record modes

The Shogun Studio 2 offers Pre Roll recording with a 8 second cache in HD, or 2-3 seconds in 4K, to make sure you never miss the action. It also offers Multi Camera ISO recording and Switching of up to 8 SDI inputs from cameras at up to 1080 p60. Each bank of 4 inputs also benefits from a switched output allowing you to have two video switched.

The ProRes RAW Advantage

ProRes RAW is now firmly established as the new standard for RAW video capture, with an ever growing number of supported HDMI and SDI cameras. ProRes RAW combines the visual and workflow benefits of RAW video with the incredible real-time performance of ProRes.

The format gives filmmakers enormous latitude when adjusting the look of their images and extending brightness and shadow detail, making it ideal for HDR workflows. Both ProRes RAW, and the higher bandwidth, less compressed ProRes RAW HQ are supported.

Manageable file sizes speed up and simplify file transfer, media management, and archiving. ProRes RAW is fully supported in Final Cut Pro, Adobe Premiere Pro, Avid Media Composer 2020.10 update, along with a collection of other apps including ASSIMILATE SCRATCH, Colorfront, FilmLight Baselight and Grass Valley Edius.

SCREEN TECHNOLOGY

Class leading screen technology

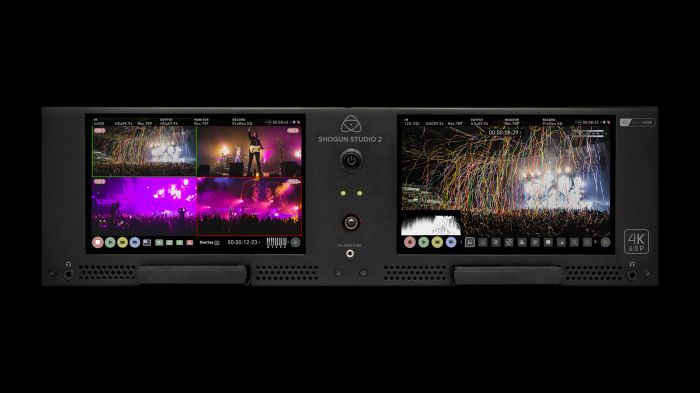

The dual 7” screens of the Shogun Studio 2 have advanced dynamic zoned backlighting for deeper blacks and brighter whites, while retaining every detail in the highlights. See what the camera channel is capturing with unparalleled precision and use the advanced HDR tools for Log or RAW to ensure perfect exposure, colour and white balance.

Shogun Studio 2

HDR dual monitor and 8-channel HDp60 / 2-channel 4Kp60 rackmount recorder

Please note:
Specifications are subject to change without notice.
All information correct at time of publishing.
