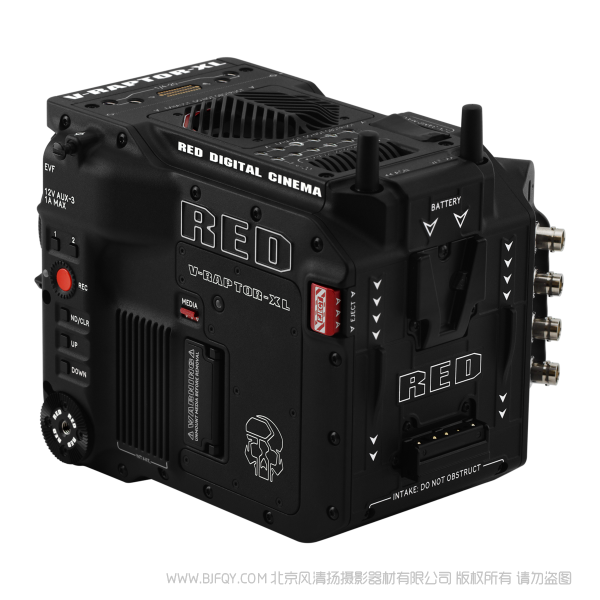

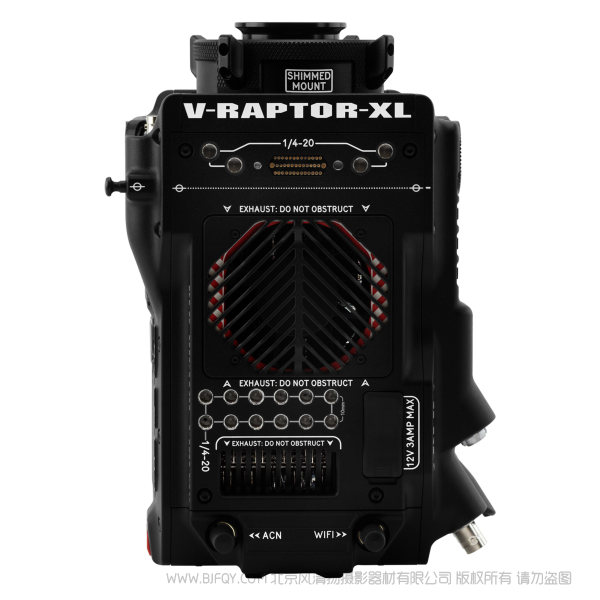

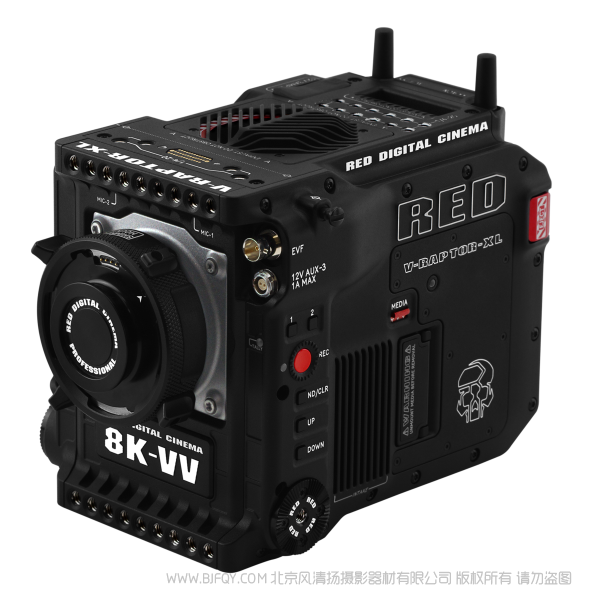

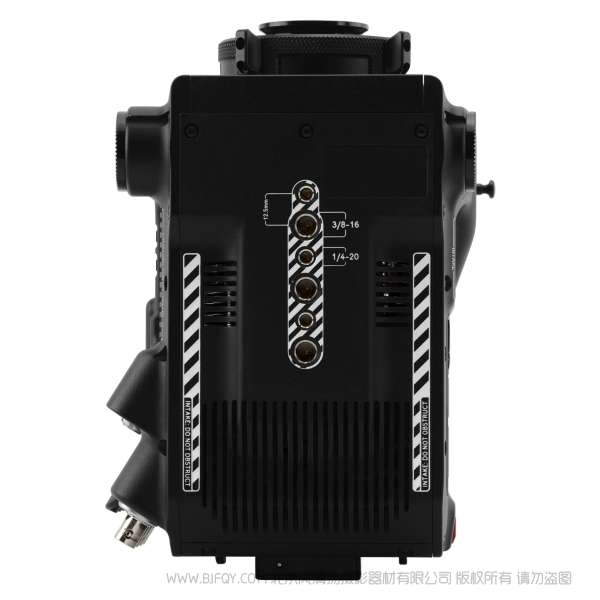

RED V-RAPTOR XL 8K VV 红色 霸王龙 电影机
￥ 345000.00元
相关推荐
7999.00
RED V-RAPTOR 迅猛龙肩托 快装板平台 QUICK RELEASE PLATFORM PACK SKU 790-0692
2699.00
RED PRO CFEXPRESS 1TB 存储卡 CEB原装卡 SKU 750-0102
249500.00
RED V-RAPTOR [X] 迅猛龙X 8K VV 3540万像素 SKU 710-0390-02 电影机 全域快门传感器
359999.00
RED V-RAPTOR XL [X] 霸王龙X SKU 710-0394 电影机 全域快门 3540万像素 8K120P 4K240P
3999.00
RED PRO CFAST 512GB Cfast闪存卡 存储 原装 SKU 750-0093
同样令人惊叹的图像，增强了现场体验
V-RAPTOR™XL 8K VV扩展了迄今为止强大和先进的RED®相机平台。使用RED的新旗舰传感器，V-RAPTOR XL将业界公认的V-RAPTOR™8K VV传感器置于大规模生产的XL相机机身内。
行业工具
V-RAPTOR XL旨在支持高端电视和电影制作，以及任何需要一体化解决方案的电影制作人。
双电压电池支持提供兼容广泛的常见电池发现在今天的设置，无论是14伏电池和高压26伏V锁或金安装选项。
12v和24v辅助电源输出允许相机助手从一个集中的地方为完成工作所需的所有外设供电。
前置3G-SDI和2引脚12v电源，以及与DSMC3™RED®Touch 7.0”LCD兼容，支持任何相机操作员的观看偏好。
无线时间码、genlock和摄像头控制以及四个SDI输出支持DIT，使他们能够访问他们在购物车中需要的一切。
内置的电子ND允许电影摄影师精确地选择他们的密度在¼，1/3和完全停止增量，提供从未见过的曝光和景深控制在这个级别的电影摄像机内。
此外，V-RAPTOR/V-RAPTOR™XL和DSMC3平台具有先进的连接解决方案，可实现RED Connect等应用，用于8K R3D电影直播和远程录制，远程控制和监控，相机内帧。io集成、AWS直接上传等等。
v -猛禽8k vv传感器在里面
V-RAPTOR XL 8K VV采用与紧凑模块化的V-RAPTOR机身内相同的开创性多画幅8K传感器，能够拍摄8K大幅画幅或6K S35，解锁市场上任何同类相机中较大的镜头选择，同时允许射手能够始终捕捉超过4K的镜头。该传感器还拥有较高记录的动态范围和任何RED相机的较干净的阴影性能。此外，V-RAPTOR传感器扫描时间比以往任何RED相机快2倍，它允许用户在2K下捕获高达600 fps。V-RAPTOR XL还将继续采用RED专有的REDCODE RAW编解码器，允许用户捕获16位RAW，并利用RED较新的IPP2工作流程和颜色管理。
V-RAPTOR XL 8K VV
SENSOR TYPE 产品名称 | V-RAPTOR™ 8K VV 35.4 Megapixel CMOS | |||
|---|---|---|---|---|
EFFECTIVE PIXELS 画幅尺寸 | 8192 x 4320 | |||
SENSOR SIZE 传感器尺寸 | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) | |||
DYNAMIC RANGE 动态范围 | 17+ stops | |||
BUILT-IN ND 内置ND | Motorized clear filter and precision controlled electronic ND filter Electronic ND minimum density 2 stops, maximum density 7 stops Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop | |||
MOUNT TYPE 镜头卡口 | Interchangeable Lens Mount, Included V-RAPTOR XL PL Mount (Shimmable) Optional V-RAPTOR XL Locking Canon EF Mount Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control | |||
MEDIA TYPE 存储卡类型 | CFexpress Type B | |||
BATTERY TYPE 电池类型 | Integrated Dual Voltage 14/26 V V-Lock battery interface | |||
MAX DATA RATES 数据流峰值 | Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1] | |||
REDCODE® RAW MAX FRAME RATES 画幅帧率选择 | 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864) | |||
PLAYBACK FRAME RATES (PROJECT TIME BASE) 帧率可选
| 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions | |||
BEST AVAILABLE REDCODE® SETTINGS 拍摄格式 | REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps | |||
REDCODE® RAW 画幅比例 | 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1 | |||
APPLE PRORES 苹果Prores格式选择 | Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P | |||
CONSTRUCTION 构造 | Aluminum Alloy | |||
WEIGHT 重量 | 8lbs / 3.65kg (V-Lock with PL Mount) 8.08lbs / 3.66kg (Gold Mount with PL Mount) | |||
DC POWER INPUT 电源输入 | 19.5-34 V via 4-pin 2B DC-IN | |||
OPERATING TEMPERATURE 工作温度 | 0°C to 40°C (32°F to 104°F) | |||
STORAGE TEMPERATURE 存放温度 | –20°C to 50°C (–4°F to 122°F) | |||
STORAGE RELATIVE HUMIDITY 存放湿度 | 0% to 85% non-condensing | |||
COLOR MANAGEMENT 色彩范围 | Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import of CDLs | |||
AUDIO 音频 | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel mic/line/+48V input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz | |||
AUTOFOCUS 自动对焦 | Phase Detect and Contrast | |||
REMOTE CONTROL 控制接口 | Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Wired control via USB-C (compatible USB-C to Ethernet adapter1 required) or Gigabit Ethernet allowing remote camera control, live MJPEG preview video feed and remote media offload 9-Pin 0B GIG-E (1000BASE-T) 4-Pin 00B CTRL (RS-232) | |||
POWER OUTPUTS[2] 外接电源选择 | Regulated 12 V Outputs 2x P-TAP Connectors (3AMP Combined) 1x Rear 2-Pin 0B (3 AMP) 1x Rear 2-Pin 0B (1.5 AMP) 1x Front 2-Pin 0B (1 AMP) Regulated 24 V Connectors 2x Front 3-Pin Fischer (3 AMP Combined) | |||
MONITOR OUTPUTS 外接监视器接口 | Proprietary Top Accessory Port for Monitoring and Control 3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3) 1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF) 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio | |||
MONITOR OPTIONS 外监指标 | DSMC3™ RED® Touch 7.0” LCD IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet. Integrated 2.4" LCD for camera control (no preview video) | |||
CAMERA SYNC OPTIONS 同步拍摄指标 | Tri-Level Genlock through BNC Linear Timecode (LTC) through 5-Pin 0B PTP through 9-Pin 0B GIG-E Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN) | |||
RED CONTROL 接口 | Access full camera controls and live preview from iOS or Android devices. Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C or Ethernet. | |||
