RED KOMODO-X ST 科莫多X 电影机 支持6K80P 4K120P IP生态
￥ 85000.00元
相关推荐
7999.00
RED V-RAPTOR 迅猛龙肩托 快装板平台 QUICK RELEASE PLATFORM PACK SKU 790-0692
2699.00
RED PRO CFEXPRESS 1TB 存储卡 CEB原装卡 SKU 750-0102
249500.00
RED V-RAPTOR [X] 迅猛龙X 8K VV 3540万像素 SKU 710-0390-02 电影机 全域快门传感器
359999.00
RED V-RAPTOR XL [X] 霸王龙X SKU 710-0394 电影机 全域快门 3540万像素 8K120P 4K240P
3999.00
RED PRO CFAST 512GB Cfast闪存卡 存储 原装 SKU 750-0093
KOMODO- x™是KOMODO家族的下一个演进，增加了原始KOMODO的帧速率，动态范围和可用性，以开辟新的领域。
下一代科莫多®传感器
KOMODO- x具有与KOMODO相同尺寸的6K S35全局快门传感器，但具有重新设计和关键架构改进。
改进的阴影细节和色彩，加上两倍的6K 80P和4K 120P帧率，使KOMODO-X成为创意人员更强大的工具。
增强的主体和I/O
随着专业工作流程的关键改进，KOMODO- x现在与DSMC3™系列共享许多功能，同时仍然保持令人印象深刻的KOMODO小尺寸。集成的微型V-Lock允许直接连接专业微型V-Lock电池而不需要适配器，并且还与即将推出的RED Pro I/O模块兼容，以提供辅助电源，并与全尺寸V-Lock和金mount电池兼容。

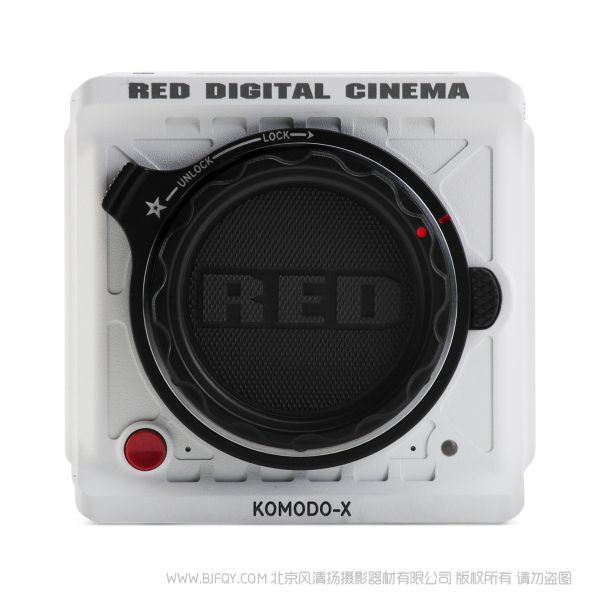

带有锁定机制的强化RF镜头卡座保持了多种镜头卡座类型之间无工具切换的灵活性，同时提供专业人员所需的稳定性和刚性。KOMODO-X也完全兼容/i PL镜头使用RED®RF到PL适配器。

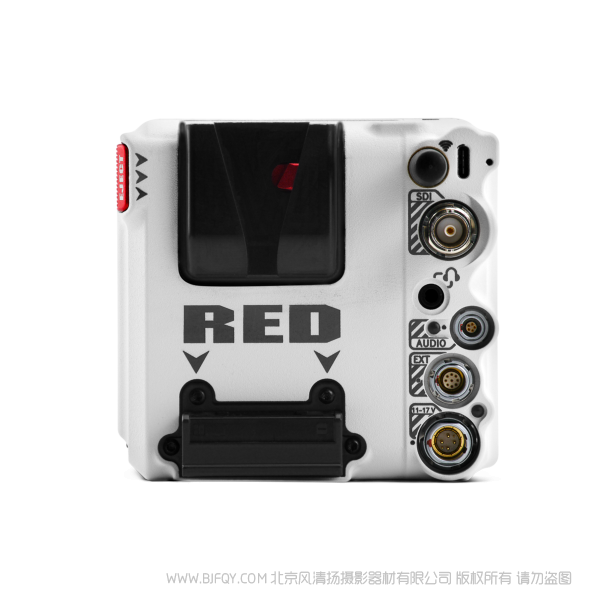

12G SDI、全尺寸DC-IN、USB Type-C和幻影供电锁定音频连接器进一步使KOMODO-X能够无缝集成到任何专业工作流程中。KOMODO- x兼容DSMC3™RED®5针转单3.5mm适配器，以支持现有的KOMODO麦克风，或DSMC3™RED®5针转双XLR适配器，用于通用XLR麦克风。
集成的2.9英寸LCD允许在紧凑的设置中简化控制和图像预览。为了更精确的监控，KOMODO-X支持DSMC3™RED®Touch 7.0“LCD，提供日光可视，高分辨率，摄像机顶部监控和控制解决方案，而无需混乱的电缆。
IP连接
KOMODO-X是一个强大的平台，任何基于IP的工作流程，从虚拟生产直播。集成USB Type-C连接和内置Wi-Fi，远程控制摄像机使用RED control或RED control Pro，以及IP媒体卸载使用FTPS或相机内云上传功能(帧。io和S3)。此外，KOMODO-X支持帧精确的PTP同步或三电平genlock传感器同步，能够在飞行中偏移，以支持多摄像头LED批量生产。
KOMODO-X还支持RED Connect，这是一项授权功能，允许通过IP直接从摄像机直播6K图像，将RED的电影图像扩展到无限的新用途。
KOMODO-X
SENSOR TYPE 产品型号 | KOMODO-X 19.9MP Super 35mm Global Shutter CMOS | |||
|---|---|---|---|---|
EFFECTIVE PIXELS 画幅 | 6144 x 3240 | |||
SENSOR SIZE 传感器大小 | 27.03 mm x 14.26 mm (Diagonal: 30.56mm) | |||
DYNAMIC RANGE 动态范围 | 16.5+ stops | |||
MOUNT TYPE 卡口 | Integrated locking RF mount with electronic communication Supports /i PL lenses with RED® RF to PL Adapters Supports Canon EF Adapter with communication and other adapters based on the RF mount | |||
MAX DATA RATES 存储卡 | Up to 560 MB/s using RED branded or other qualified CFexpress media cards[1] | |||
REDCODE® RAW MAX FRAME RATES 帧率画幅格式 | 80 fps at 6K 17:9 (6144 x 3240) 96 fps at 5K 17:9 (5120 x 2700)) 120 fps at 4K 17:9 (4096 x 2160) 240 fps at 2K 17:9 (2048 x 1080) | |||
PLAYBACK FRAME RATES (PROJECT TIME BASE) 帧率选择 | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions | |||
BEST AVAILABLE REDCODE® SETTINGS 录制文件格式 | REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps | |||
REDCODE® RAW 画幅比
| 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700) and 16:9 4K 17:9 (4096 x 2160) and 16:9 2K 17:9 (2048 x 1080) | |||
APPLE PRORES 苹果格式 | Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps | |||
CONSTRUCTION 构建 | Aluminum Alloy | |||
DIMENSIONS 体积 | 129.37 x 101.26 x 95.26 mm / 5.1 x 4 x 3.8 in (LxWxH, largest fixed dims.) | |||
WEIGHT 重量 | 2.62lbs (without body cap and CFexpress card) 1.2kg （不含机身盖与存储卡） | |||
MEDIA TYPE 存储卡类型 | CFexpress Type B | |||
BATTERY TYPE 电池类型 | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1] | |||
DC POWER INPUT 外接电源 | 11-17V via 6-pin DC-IN | |||
OPERATING TEMPERATURE 工作温度 | 0°C to 40°C (32°F to 104°F) | |||
STORAGE TEMPERATURE 储藏温度 | –20°C to 50°C (–4°F to 122°F) | |||
STORAGE RELATIVE HUMIDITY 储藏湿度 | 0% to 85% non-condensing | |||
COLOR MANAGEMENT 色彩管理 | Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import and adjustment of CDLs | |||
AUDIO 音频 | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz | |||
AUTOFOCUS 自动对焦 | Phase Detect and Contrast | |||
MONITOR OPTIONS 外监选项 | Proprietary Top Accessory Port for Monitoring and Control Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio | |||
ADDITIONAL I/O 其它接口 | Tri-Level Genlock Input via 9-Pin EXT LTC Timecode Input via 9-Pin EXT RS232 CTRL (using RCP2) via 9-Pin EXT | |||
IP CONNECTED 网络接口 | Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and media offloading Ethernet via USB Type-C for camera control, video preview, and media offloading MJPEG 1080p live stream accessible through Wi-Fi and USB-C. PTP for frame level synchronization R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter | |||
RED CONTROL & RED CONTROL PRO 远程控制 | Access full camera controls and live preview from iOS or Android devices Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location. Standard app available from the Apple App Store and Google Play Store. RED Control Pro available via Apple App store only and requires additional purchase. RED Control works wirelessly or wired via USB-C | |||
1. For more information on compatible accessories, go to red.com/third-party-accessories
Tech specs reflect both current and projected information. Everything is subject to change.
