DSMC3 RED 5-PIN TO DUAL XLR ADAPTER 5针转XLR适配器
￥ 2599.00元
相关推荐
7999.00
RED V-RAPTOR 迅猛龙肩托 快装板平台 QUICK RELEASE PLATFORM PACK SKU 790-0692
2699.00
RED PRO CFEXPRESS 1TB 存储卡 CEB原装卡 SKU 750-0102
249500.00
RED V-RAPTOR [X] 迅猛龙X 8K VV 3540万像素 SKU 710-0390-02 电影机 全域快门传感器
359999.00
RED V-RAPTOR XL [X] 霸王龙X SKU 710-0394 电影机 全域快门 3540万像素 8K120P 4K240P
3999.00
RED PRO CFAST 512GB Cfast闪存卡 存储 原装 SKU 750-0093

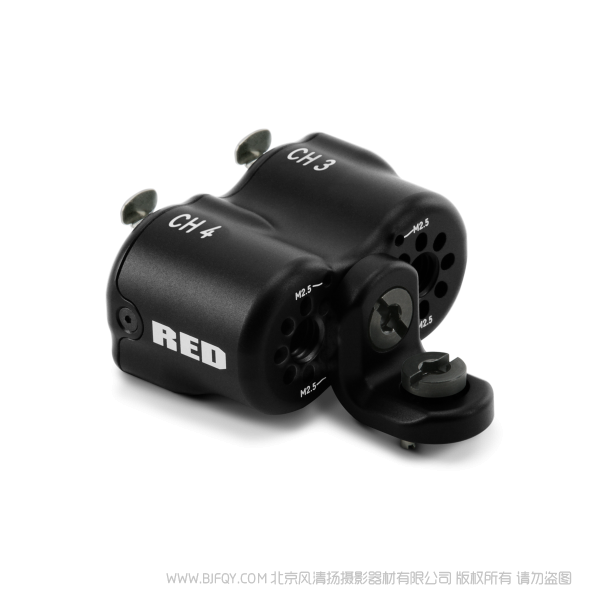

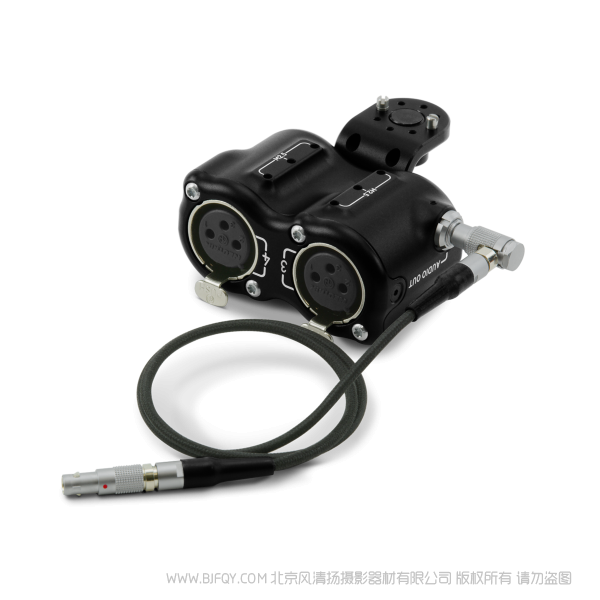

The DSMC3™ RED® 5-Pin to Dual XLR Adapter is a compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports. The Adapter can provide 48V phantom power with mic and line input and is easily mounted to your V-RAPTOR™ via ⅜-16 screw.
For issues troubleshooting, contact support@cs.inc.
COMPATIBILITY: The DSMC3 RED 5-Pin to Dual XLR Adapter is not compatible with DSMC®, DSMC2®, RED RANGER® or KOMODO® camera systems.
DSMC3™RED®5引脚转双XLR适配器是一种紧凑型解决方案，可将5引脚ODU端口转换为双3引脚XLR端口。适配器可以提供带麦克风和线路输入的48V幻象电源，并可通过8 / -16螺钉轻松安装到V-RAPTOR™上。
兼容性:DSMC3 RED 5针转双XLR适配器与DSMC®，DSMC2®，RED RANGER®或KOMODO®相机系统不兼容。
DIMENSIONS ADAPTER 物理尺寸 | Height: 1.31 in (33.15 mm) Width: 2.54 in (64.50 mm) Depth: 1.70 in (43.16 mm) |
|---|---|
| DIMENSIONS RIGHT ANGLE BRACKET | Height: 1.10 in (28.00 mm) Width: .87 in (22.00 mm) Depth: 1.10 in (28.00 mm) |
| WEIGHT ADAPTER W/ BRACKET | Approximately 0.50 lbs (224.81 g) |
| MATERIAL | Aluminum and Rubber |
| CONNECTION TO V-RAPTOR | Via 5-Pin Audio Port |
| CONNECTORS | 2x 3-Pin XLR (Female) |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
