图丽 Tokina atx-m 11-18mm F2.8 E 微单系列镜头 APSC画幅 变焦镜头

APS-C

Sensor Size

67mm

Filter Size

335g

Weight

The atx-m series is targeting high speed growing mirrorless cameras market with high quality and yet superior cost performance optical lenses.

Preserving the Tokina's advanced technology (atx) new series is marked with "m" letter, that stands for "motif" and "mirrorless" - motivation that Tokina provides to photographer for creating unique and breathtaking photos with mirrorless cameras.

Product Overview

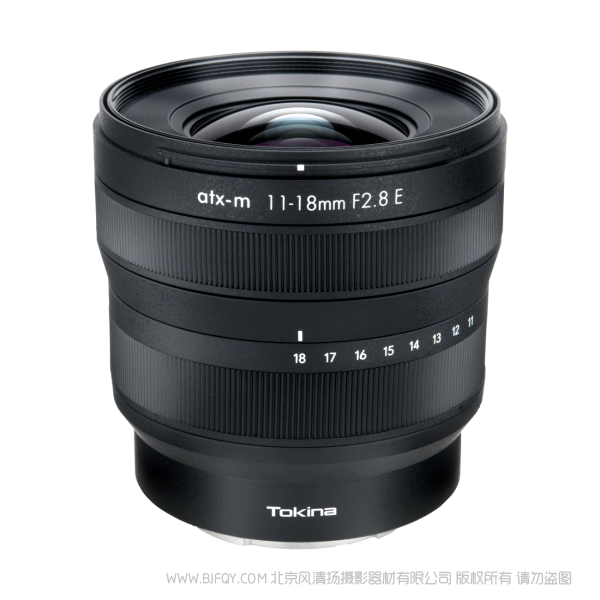

The Tokina atx-m 11-18mm F2.8 E is the first super wide angle zoom lens in Tokina's product line-up designed exclusively for mirrorless cameras. It features a fast f/2.8 aperture throughout the zoom range, and a 11-18mm (17-27mm in 35mm equivalent) zoom stored in a compact and lightweight body for active hybrid users who shoot stills and video.

Compact & Lightweight

The Tokina atx-m 11-18mm F2.8 E features a lightweight (335g) and compact (overall length 74.1 mm) design to match Sony E mount mirrorless cameras. Despite the fact that this is a super wide angle lens, it is so small that it does not give a bulky feel, even when shooting with one hand.

Optical Design

The Tokina atx-m 11-18mm F2.8 incorporates a complex optical design with a well-balanced arrangement of 2 aspherical and 2 super low-dispersion (SD) glass elements to suppress chromatic aberrations and provide rich color reproduction, low distortion and low light fall-off.

Complete Communication with Camera Body

The Tokina atx-m 11-18mm F2.8 provides full compatibility with Sony E mount cameras' advanced features, including fast hybrid AF, Image Stabilization, Direct Manual Focus, MF Assist mode, Eye AF and different optical corrections such as shading, chromatic aberration and distortion.

Silent ST-M for the best AF actions

The Tokina atx-m 11-18mm F2.8 incorporates a silent ST-M motor unit coupled with the lens position sensor for fast and precise auto focusing operations in still and video modes.

Micro USB Port for Firmware Updates

The lens' firmware can be updated by customers using a USB (Type B) cable.

Notes:

• This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

General info

Model

atx-m 11-18mm F2.8 E

Model Description

Tokina atx-m 11-18mm F2.8 E

Series

atx-m

Type

Wide Zoom

Sensor Size

APS-C

Mount

Sony E

Color

Black

Country of Origin

Japan

Main specifications

Focal Length

11-18mm

Maximum Aperture

f/2.8

Minimum Aperture

f/22

Automatic Aperture

Yes

Angle of View

104°-77°

Minimum Focusing Distance

0.19m

Macro Ratio

1 : 9.2

Focusing Mode

Automatic

Manual Focusing Ring

Yes

Autofocus Switch

Camera Switch

Focusing Type

Internal Focus

Filter Size

67mm

Coating

Multi-coating

Construction

Construction E/G

13 Elements in 11 Groups

Aperture Blades

9

Lens Hood

BH-674

Electrical Contacts

Yes

Additional info

Dimensions

74x74 mm

Weight

335g

Package

Carton Box, Cleaning Cloth, Front Lens Cap, Instructions Manual, Lens Hood, Rear Lens Cap, Warranty Sheet

Warranty

2 Year Limited Warranty

与相机机身完全通信

Tokina atx-m 11-18mm F2.8 完全兼容索尼 E 卡口相机的高级功能，包括快速混合自动对焦、图像稳定、直接手动对焦、手动对焦、手动对焦辅助模式、眼部自动对焦和不同的光学校正，如阴影、色差和畸变。

静音ST-M，实现较佳自动对焦动作

Tokina atx-m 11-18mm F2.8 集成了静音 ST-M 电机单元和镜头位置传感器，可在静止和视频模式下实现快速、精确的自动对焦操作。

用于固件更新的微型 USB 端口

客户可以使用 USB（B 型）电缆更新镜头的固件。

笔记：

• 本产品是根据索尼公司根据与索尼公司的许可协议披露的 E 卡口规格开发、制造和销售的。
