Tokina 图丽 atx-i 100mm F2.8 FF MACRO PLUS TELE PRIME 微距镜头 佳能EF单反相机 尼康F卡口单反相机

Mounts: Canon EF, Nikon F

Full Frame

Sensor Size

55mm

Filter Size

515g (Nikon F)
525g (Canon EF)

Weight

留下光荣的AT-X缩写，新添加字母“i”。“i”代表“互动”，意味着摄影师和镜头之间的相互交流。我们相信，这个系列将使摄影师能够大量参与捕捉，捕捉他们周围的气氛。

About atx-i Series

Leaving the honorable AT-X abbreviation, the letter "i" was newly added. The "i" stands for "interactive", implying mutual communication between photographer and the lens. Our belief is that this series will equip photographers with the ability to substantially engage with capture capture the atmosphere around them.

Exterior, specifications and performance of Tokina's popular and well acknowledged so far AT-X PRO lenses are reconsidered with the contemporary cameras in mind and launched under atx-i brand.

Product Overview

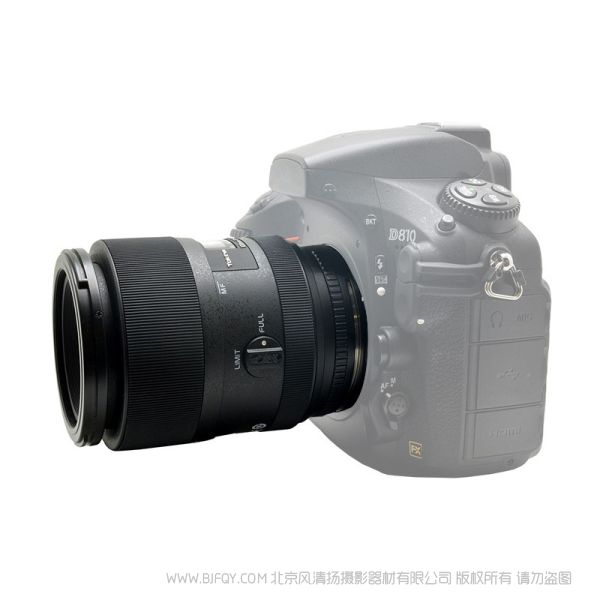

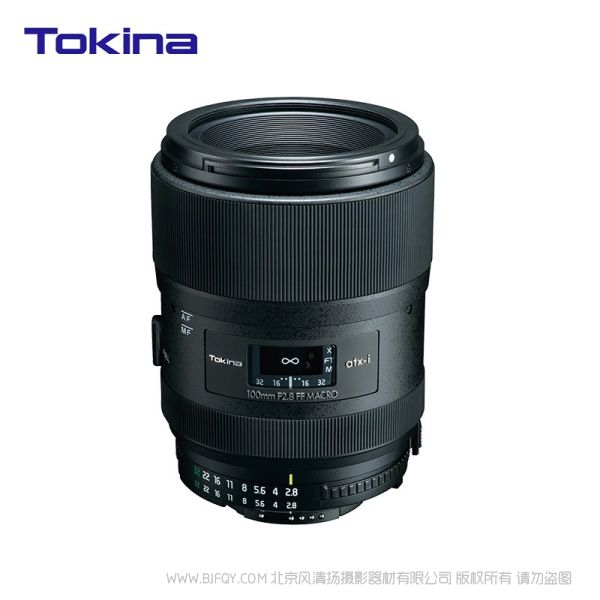

The Tokina atx-i 100mm F2.8 FF MACRO is a compact medium tele macro lens for full frame format film and digital SLR cameras. Being light-weight, compact, performing high resolution, fast aperture, low distortion, low falloff and beautiful soft bokeh this lens is extremely attractive tool for macro, portraits, landscapes, street art, commercial and general purpose shooting.

Optical Performance

To achieve an exceptional optical performance in still and video shooting purposes, two aspherical glass elements and two Super-Low Dispersion glass elements were used in order to minimize distortion, manage spherical aberration and astigmatism while achieving excellent edge-to edge resolution and contrast of the entire image. Great efforts were done to control light fall-off at all focal lengths.

Mechanics

The front of the lens has a 55mm filter threads which extends during the focusing but does not rotate. This allows different filters including polarizers to be used for landscape or product photography.

A focus range limiter switch on the side of the lens locks the lens focus into or out of the macro focusing range to avoid excessive AF hunting.

The direction of the manual focusing ring matches the proprietary direction of Nikon and Canon lenses.

The Tokina atx-i 100mm F2.8 FF MACRO Nikon F mount is equipped with manual aperture ring based on Ai AF Nikkor D-Type* lens standard that allows to use this lens with wide variety of cameras including old Nikon film cameras.

* When used with Nikon DSLRs that do not have a focus motor in the camera body like D3000 and D5000 series only MF mode is available.

High-Light Features

• Compact and lightweight design.
• Life-sized (1:1) reproduction at 30 cm.
• Extremely high corner to corner resolving performance and almost zero distortion.
• Beautiful bokeh with almost circular-shaped background highlights for portrait shooting thanks to classical extending barrel focusing system.
• A focus range limiter switch for effective focusing routine.
• The direction of the manual focusing ring matches the proprietary direction of Nikon and Canon lenses.
• Manual aperture ring (Nikon F mount only) based on the standards of Ai AF Nikkor D-Type lenses to use with wide variety of cameras including old Nikon film cameras.
• One-touch focus Clutch mechanism to switch between autofocus and manual focus easy.

For Environmental Portraits

Due to classical extending barrel focusing system the lens creates magnificently soft bokeh in both the background and foreground. 100mm focal length is short enough to allow easy and natural communication with the model, creating a feeling of comfort and creativity. In combination with fast f/2.8 aperture the lens can be used in the widest variety of shooting settings both indoor and outdoor.

Incorporated 9 bladed diaphragm creates beautiful, almost circular-shaped background highlights up to f/5.6 with effectively surpassed longitudinal chromatic aberration.

For Distant Landscapes

We developed the Tokina atx-i 100mm F2.8 FF MACRO not just only for macro shooting. Challenge yourself in distant landscapes by using 100mm focal length to capture interesting object in the foreground and beautiful compressed landscape scenery in the background. The lens was designed for this shooting genre by realizing impressive color rendering and high resolution abilities.

For Macro Shooting

The Tokina atx-i 100mm F2.8 FF MACRO incorporates all the necessary features and provides all the main advantages for dedicated macro shooters. The lens is capable of life-sized (1:1) reproduction at 30 cm. This allows photographers to have a little working distance from the subject and still obtain impressive magnification. Having some working distance is important when shooting easily startled subjects such as insects. Designed for full frame sensors, the focal length equivalent on a DSLR with an APS-C sensor turns to 150mm on Nikon camera and 160mm on Canon. This gives an advantage of shooting macro with 1.5x-1.6x larger magnification than a full frame camera.

For Video & Time-Lapse Shooting

Depending on purpose and the way of expression the Tokina atx-i 100mm F2.8 FF MACRO can be useful gear for close-up commercial video* and time-lapse shooting thanks to its excellent color reproduction if you film in LOG and exceptional sharpness.

* MF mode is suggested when shooting video.

General info

Model

atx-i 100mm F2.8 FF MACRO PLUS

Model Description

Tokina atx-i 100mm F2.8 FF MACRO PLUS

Series

atx-i

Type

Tele Prime

Sensor Size

Full Frame

Mount

Canon EF, Nikon F

Macro Lens

Yes

Color

Black

Country of Origin

Japan

Main specifications

Focal Length

100mm

Maximum Aperture

f/2.8

Minimum Aperture

f/32

Automatic Aperture

Yes

Manual Aperture Ring

Yes (for Nikon F)

Angle of View

24°

Minimum Focusing Distance

0.3m

Macro Ratio

1 : 1

Focusing Mode

Automatic

Manual Focusing Ring

Yes

Autofocus Switch

Clutch Ring

Focusing Type

External Focus

Filter Size

55mm

Coating

Multi-coating

Construction

Construction E/G

9 Elements in 8 Groups

Aperture Blades

9

Lens Hood

BH-551

Electrical Contacts

Yes

Additional info

JAN/EAN code

4961607640876 (Nikon F)
4961607640883 (Canon EF)

Dimensions

73x95 mm (Nikon F)
73x98 mm (Canon EF)

Weight

515g (Nikon F)
525g (Canon EF)

Package

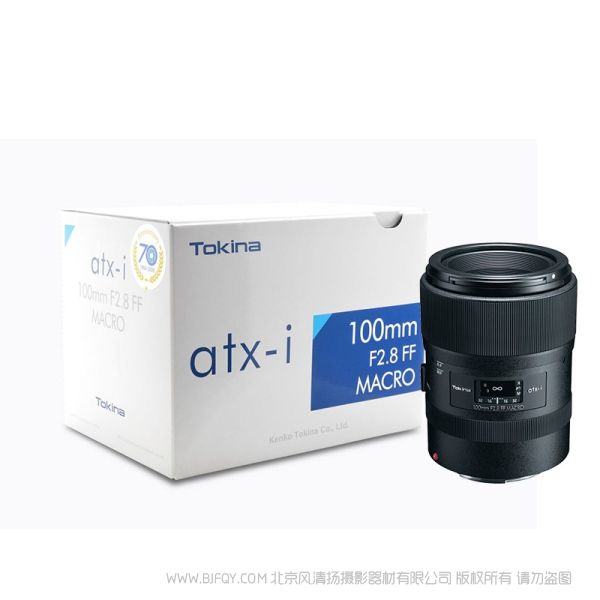

Carton Box, Cleaning Cloth, Front Lens Cap, Instructions Manual, Lens Hood, Rear Lens Cap, Warranty Sheet

Warranty

2 Year Limited Warranty
